AI SYSTEMS

Metis® PCIe System with Advantech

Empower embedded edge applications with state-of-the-art AI inference capabilities.

Advantech

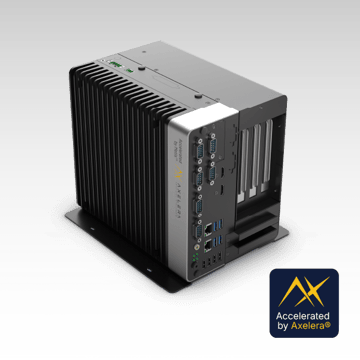

Metis PCIe System with Advantech ARK-3534

For industrial environments; get your industrial grade system from Advantech.

CPU
CPU: INTEL Core i5-12500E
RAM
RAM: 16GB DDR5 4800MHz
Storge
Storage: 512GB SSD
Dimesion
Dimensions: 156 x 204 x 230 mm
Ubuntu
Ubuntu 22.04 / Voyager® SDK
Inquire Now
Download product brief
Metis PCIe System with Advantech ARK-3534
Metis PCIe System with Advantech ARK-3534

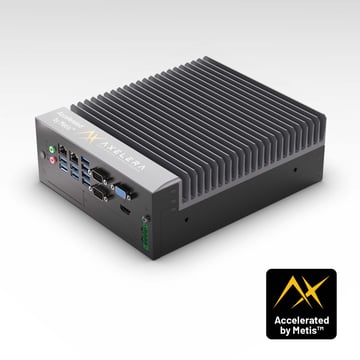

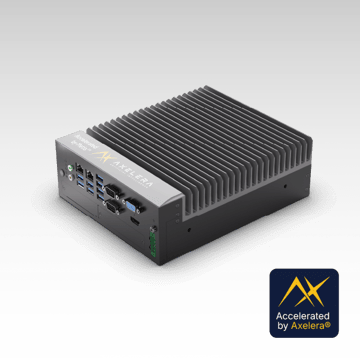

Metis PCIe System with Advantech MIC-770v3

For industrial environments; start with this entry-level industrial PC from advantech.

CPU
CPU: Intel Core i5-12500TE
RAM
RAM: 16GB DDR5 4800MHz
Storge
Storage: 512GB SSD
Dimesion
Dimensions: 127 x 192 x 230 mm
Ubuntu
Ubuntu 22.04 / Voyager® SDK
Inquire Now
Download product brief
Metis PCIe System with Advantech MIC-770v3
Metis PCIe System with Advantech MIC-770v3

Key Features

Energy Efficient Icon
Supported by Advantech ARK-3534 or MIC-770v3, designed for advanced computing and automation including for industrial environments.
rocket icon
Inference at the Edge powered by Metis AIPU delivering 214 TOPS/s with industry-leading energy-efficiency.
Scalable Icon
Everything you need to get started in a single box pre-integrated Metis PCIe card and pre-installed Voyager SDK.
network icon
A simplified Edge AI inference - run a preloaded neural network in under ten minutes and leverage industry-standard API combined with built-in evaluation tools.
data icon
A growing Model Zoo with a broad coverage of computer vision networks for object detection, image classification, pose estimation and segmentation.

Technical Specifications

Metis 1x Metis PCIe Card with 4 GB memory
Processor Intel Core i5 12500E
Memory 16 GB DDR5 5600 MT/s, SO
Storage M.2 512 GB
Operating System Linux Ubuntu 22.04
PCIe Half-height Gen 3 PCIe x4 slot (Metis AIPU PCIe card)

Metis AI Accelerator Card Compatible Host Systems: Advantech

Metis AI Accelerator Cards are compatible with any host system that satisfies the requirements outlined in the datasheets. The systems below are validated Advantech examples from Axelera and its partners. If you are interested in any of these systems, please contact us by filling out the form below.

Advantech Host Systems
Manufacturer Host System Description
Metis 1-chip PCIe
Advantech ARK-3534B Intel Core i3/i5/i7, embedded fanless box PC
Advantech MIC-770v3 Intel Core i5/i7/i9, compact modular industrial
Advantech AOM-5521 NXP i.MX 95, 82×50 mm
Metis 4-chip PCIe
Advantech MIC-75G30 Intel Xeon/Core, ruggedized GPU system

.
